RT100-2Z全自动圆管抛光机（2头） AUTOMATIC TUBE POLISHING MACHINE 介绍: RT100Z系列全自动抛光机具有首创的行星运动系统，并具有集中控制系统。 此系列的机器每个机头都可以单独开关，独立控制。 Thegrinder RT100 Z has the ML belts planetary system. Its work is totallycontrolled in the touch screen. The heads are completely independent and youachieve the final result in one single passage.

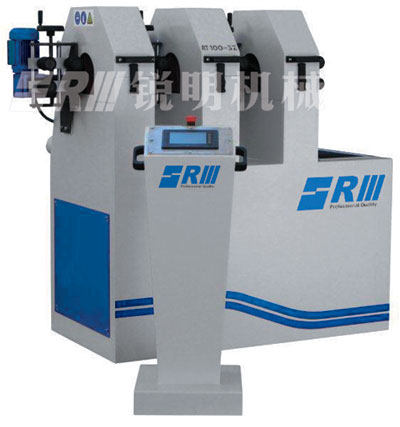

RT100-3Z全自动圆管抛光机（3头） AUTOMATIC TUBE POLISHING MACHINE 介绍: RT100Z系列全自动抛光机具有首创的行星运动系统，并具有集中控制系统。 此系列的机器每个机头都可以单独开关，独立控制。 Thegrinder RT100 Z has the ML belts planetary system. Its work is totallycontrolled in the touch screen. The heads are completely independent and youachieve the final result in one single passage.
参数 TECHNICAL DATA RT100-2Z RT100-3Z 机头数量 Number of heads 2 3 砂带电机 Belts motor 2 X 2.2KW 3 X 2.2KW 主轮电机 Wheel motor 2 X 1.5KW 3 X 1.5KW 抛光管径 Working capacity Ø10 - Ø110 mm Ø10 - Ø110 mm 砂带尺寸 Belts dimensions 940 x 50 mm 940 x 50 mm 机器尺寸 Machine dimensions (cm) 130 X 100 X 130cm 160 X 100 X 130cm 重量 Approximated weight 450KG 600KG
TR100 Z系列，多头的设计能大大缩短了加工时间，提高了生产效率 An increasingly demanding market requires the shortest production schedules. ML100 Z greatly reduces the required time to complete a job.
RT100 Z系列都配备了自动进料系统 每个机头上装有传感器，使管子能更好的进出抛光区域
ML100 Z has automatic feeding and electric sensors in every head for the correct opening of the belts in enter and exit of the pipe.
不同粗细的砂带组合，能使加工一步到位
Avoid productive losses with the change of the grinding belts and reduce the number of pipe passages.
控制屏设置抛光参数简单明了 The touch screen control enables an easy and friendly use of the machine. All the parameters can be easily set up.
